# Part Number: 24-198-055 |
|

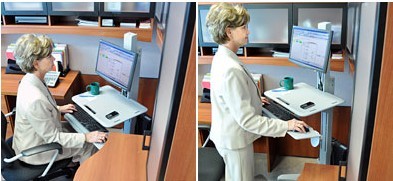

* Description: WorkFit-C Sit-Stand Workstation for Single LCD Monitor, LD, with Mobile Cart Base (two-tone grey) |
|
* Includes cart, LCD pivot, integrated worksurface, keyboard tray with left/right mouse tray, wrist rest, mouse holder, cable storage box, CPU holder, four dual casters (two locking) |
|
** A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention. New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18% |
|
* Weight Capacity: Maximum load on height-adjustment assembly = 37 lbs (16.8 kg). Includes weight of display in addition to contents on Worksurface and in Cable Storage Box. LCD pivot capacity = 5–18 lbs (2.3–8.1 kg) |
|
*† Lift Range: LCD/keyboard/worksurface adjusts 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63 cm) |
|
* Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
|
& Patented Constant Force (CF) lift-and-pivot motion technology |
|
＃ CPUs attach safely to rear of cart with CPU Holder. Accommodates CPUs from 12"H x 3"D to 18"H x 8.5"D (30 x 8 cm to 46 x 22 cm) |
|
�！PU Holder capacity = 40 lbs (18 kg) |
|
�！rgonomic negative-tilt keyboard tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity. Includes concealed mouse tray that slides out on left or right |
| �！able management storage box |
|
�！urable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder coated painted steel |
|
�！our dual casters—lockable front casters |
|
＃ Worksurface Dimensions: 22"W x 17"D (56 x 43 cm) |
|
�！heel-to-Wheel Base Dimensions: 17"W x 20.5"D (43 x 52 cm) |
|
�！eyboard Heights from ground: Minimum, 22.4" (568 mm); Maximum, 42.4" (1077 mm)
Display Heights (center of hole mounts for display) from ground: Minimum, 34.8" (884 mm); Maximum, 59.8" (1519 mm) |
|
�！hipping Dimensions: 45.5"H x 19.75"W x 24"D (116 x 50 x 61 cm) |
|
＃ Shipping Weight: 72 lbs (33 kg) |
|
�！arranty: Five (5) years |
