* Part Number: 24-197-055 |
|

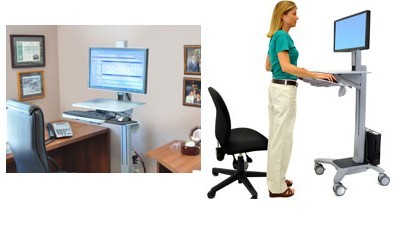

* Description: WorkFit-C Sit-Stand Workstation for Single Mid-Sized Monitor, HD, with Mobile Cart Base (two-tone grey) |
|
* Includes cart, LCD pivot, VESA adaptor brackets, integrated worksurface, keyboard tray with left/right mouse tray, wrist rest, mouse holder, cable storage box, CPU holder, four dual casters (two locking) |
|
** A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention. New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18% |
|
* Weight Capacity: Maximum load on height-adjustment assembly = 37 lbs (16.8 kg). Includes weight of display in addition to contents on Worksurface and in Cable Storage Box. LCD pivot capacity = 16–30 lbs (7.3–13.6 kg) |
|
† Lift Range: LCD/keyboard/worksurface adjusts 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63 cm) |
|
‡ Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm). For displays that use a 400 x 200 mm hole pattern, the VESA Bracket Adaptor Kit (97-474) can be ordered separately |
|
* Patented Constant Force (CF) lift-and-pivot motion technology |
|
* CPUs attach safely to rear of cart with CPU Holder. Accommodates CPUs from 12"H x 3"D to 18"H x 8.5"D (30 x 8 cm to 46 x 22 cm) |
|
* CPU Holder capacity = 40 lbs (18 kg) |
|
* Ergonomic negative-tilt keyboard tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity. Includes concealed mouse tray that slides out on left or right |
|
* Cable management storage box |
|
* Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder coated painted steel |
|
* Four dual casters—lockable front casters |
|
* Worksurface Dimensions: 22"W x 17"D (56 x 43 cm) |
|
# Wheel-to-Wheel Base Dimensions: 17"W x 20.5"D (43 x 52 cm) |
|
# Keyboard Heights from ground: Minimum, 22.4" (568 mm); Maximum, 42.4" (1077 mm)
# Display Heights (center of hole mounts for display) from ground: Minimum, 34.8" (884 mm); Maximum, 59.8" (1519 mm) |
|
# Shipping Dimensions: 45.5"H x 19.75"W x 24"D (116 x 50 x 61 cm) |
|
# Shipping Weight: 94 lbs (42.5 kg) |
|
# Warranty: Five (5) years |
Ergotron, Inc.總部位于明尼蘇達州， 由Harry C. Sweere于1982年成立。Ergotron的名字來源于Ergonomics（人體工程學）和Electronics（電子學）。顧名思義，Ergotron的宗旨是改善人與計算機、顯示器、電視機、大型顯示器及各種視頻顯示器之間的界面。Ergotron的特色是以卓越價值提供創新的優質產品
20多年來，Ergotron的產品一直在提升人與數字顯示器之間的界面。Ergotron的數字顯示器安裝解決方案包括壁掛式和臺式安裝支臂、臺式支架、移動推車、落地支架、轉軸和垂直升降支架。引進專利CF升降轉軸活動技術后,Ergotron產品讓用戶可以用更小的力量就可以進行更多的活動。每件Ergotron產品均用于在當今的計算機工作和娛樂環境中增強視覺體驗、降低疲勞并提高工作效率。
